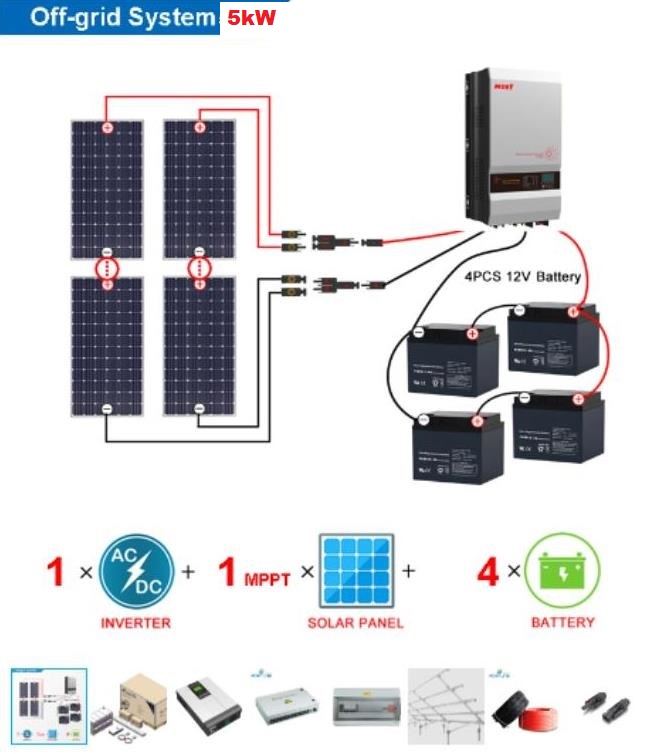

Off Grid panouri solare 5kW

Panouri solare off grid 5kW.
Model             G1K-    G1K5-    -G2K-    -G2K5-    -G3K-
DC Input Data
Max.DC Power    4700 W    5800 W    7000 W    8100 W    8600W
Max.DC Voltage    600V
MPPT voltage Range    100~550V
Start Voltage    120V
Min. DC Voltage    70V
No. of MPP Trackers    2    2
No. of Input Strings per  Tracker    1/1    2/1
Max. DC Input Current    10 A / 10 A    10 A / 10 A    10 A / 10 A    20A/10A    20A/10A
Type of DC Connector    MC4




Model                      G1K-    G1K5-    -G2K-    -G2K5-    -G3K-
DC Input Data
Max.DC Power    1200W    1800W    2400W    3000W    3400W
Max.DC Voltage    500V
MPPT voltage Range    90-500V
Start Voltage    150V
Min. DC Voltage    70V
No. of MPP Trackers    1
No. of Input Strings per  Tracker    1
Max. DC Input Current    11A    11A    11A    11A    11A
Type of DC Connector    MC4


Model                   G1K-    G1K5-    -G2K-    -G2K5-    -G3K-
DC Input Data
Max.DC Power    1200W    1800W    2400W    3000W    3400W
Max.DC Voltage    500V
MPPT voltage Range    90-500V
Start Voltage    150V
Min. DC Voltage    70V
No. of MPP Trackers    1
No. of Input Strings per  Tracker    1
Max. DC Input Current    11A    11A    11A    11A    11A
Type of DC Connector    MC4
DC Switch    Optional
AC Output Data
Rated AC Power    1000W    1500W    2000W    2500W    3000W
Max.output power    1100VA    1650VA    2200VA    2750VA    3200VA
Rated AC Current    4.4A    6.6A    8.7A    10.9A    13.0A
Max. AC Current    4.8A    7.2A    9.6A    12A    14A
Nominal AC Voltage/Range    230V/160-290V
Grid frequency/ range    50HZ/60HZ  45~55HZ/55~65HZ
Power Factor[cos φ]    0.8leading ~0.8lagging ( full load)
Total Harmonic Distortion [THDi]    <2%
Number of output phases：    L+N+PE
Efficiency
Max.Efficiency    97.20%    97.20%    97.20%    97.20%    97.20%
Euro Efficiency    96.40%    96.60%    96.60%    96.60%    96.60%
MPPT Accuracy    99.90%    99.90%    99.90%    99.90%    99.90%
Protection
DC Insulation Monitoring    Integrated
Input Reverse Polarity Protection    Integrated
Output Over Current Protection    Integrated
Anti-island Protection    Integrated
GFCI Monitoring    Integrated
OverHeat Protection    Integrated
SPD    MOV UL: E327997/CSA: 246579/VDE: 40027827
General Data
User Interface    LCD
Communication    WIFI
Ambient Temperature Range    -25 ℃ ~ 60 ℃（> 45 ℃ Derating Operation）
Relative Humidity    0-100%（No condensation）
Operating Altitude    4000m（>2000m derating Operation）
Standby Self Consumption    0
Topology    Transformerless
Cooling    Natural Convection
Protection Grades    IP65
Noise    <30dB
Warranty    5 year(Standard),10/15/20/25 year(Optional)
Certifications & Standards
Grid Regulation    VDE-AR-N-4105, VDE 0126-1-1+A1, CE, G83/2, UTE C15-712-1,
MEA, PEA, AS4777, EN50438,NB/T 32004-2013,CEI-021
Safety Regulation    IEC 62109-1, IEC 62109-2,AS/NZS 3100
EMC    EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4,
EN 61000-4-16, EN 61000-4-18, EN 61000-4-29
SYSTEM TYPE

On-grid
POWER

1kW~3kW
MODULE

Poly or Mono
INVERTER

1kW~3kW On-grid Single-Phase
WARRANTY

System 1 Year; Modules 25 Years; Inverter 5 Years
